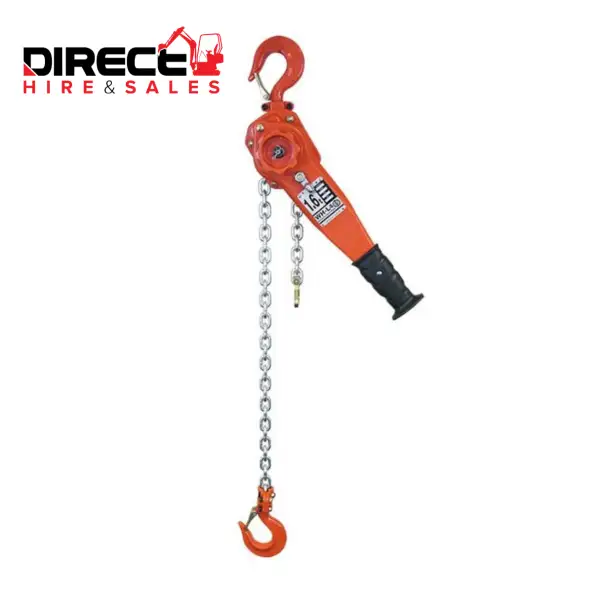

WH-L4 Ratchet Lever Hoist 800kg - 0.8 tonne
Please Note: This product is collection only
In Stock£133.88
WH L4 Ratchet lever hoist SWL 800kg 1.5m HOL
£133.88 excluding VAT.
£160.66 including VAT.
The William Hackett WH L4 Ratchet lever hoist meets and exceeds the requirements of the following international standards:
British and European Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.21-2014
Australian Standard AS1418.2-1997
South African Standard SANS 1636:2-2007
NORSOK R-002: 2017.
Specification of the WH-L4 lever hoists:
- LIGHT LOAD CAPABILITY: the WH L4 is tested and certified at 2% of the lever hoist rated capacity.
- TWIN PAWL: double safety; fitted as standard.
- SAFETY LATCHES: the WH L4 lever hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tips are integrated creating a strong and robust hook closure.
- HOOK OVERLOAD AND TRACEABILITY MARKS: hooks have overload indicator marks either side of the hook throat (500kg to 10t). Both top and bottom hooks are embossed with a batch code, manufacturer's mark and the working load limit for full traceability and compliance to international standards.
- HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc locking nuts to allow full inspection.
- FLEETING/CROSS HAULING: the WH L4 lever hoists are tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
- LOAD CHAIN: the WH L4 lever hoists are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
- TEMPERATURE RANGE: -20°C to +120°C
- PROOF TESTED: 800kg to 10 tonne hoists are proof tested to 1.5 times the Working Load Limit. 15 tonne hoists are proof tested to 1.25 times the Working Load Limit.
- OVERLOAD LIMITER: available as an option upon request.
TOP AND BOTTOM HOOK ADAPTORS: available as an option upon request. - TRAVELLING END STOP: available as an option upon request.
- MANUFACTURED AND PROOF TESTED in the U.K.
Collection is from Nottingham NG2 4DS.
For further information and stock availability please call us on 01159418860
All prices are excluding VAT at the current rate unless stated.
